PRO2AIR® SIL 611

PRO2AIR® SIL 611



PRO2AIR® SIL 611

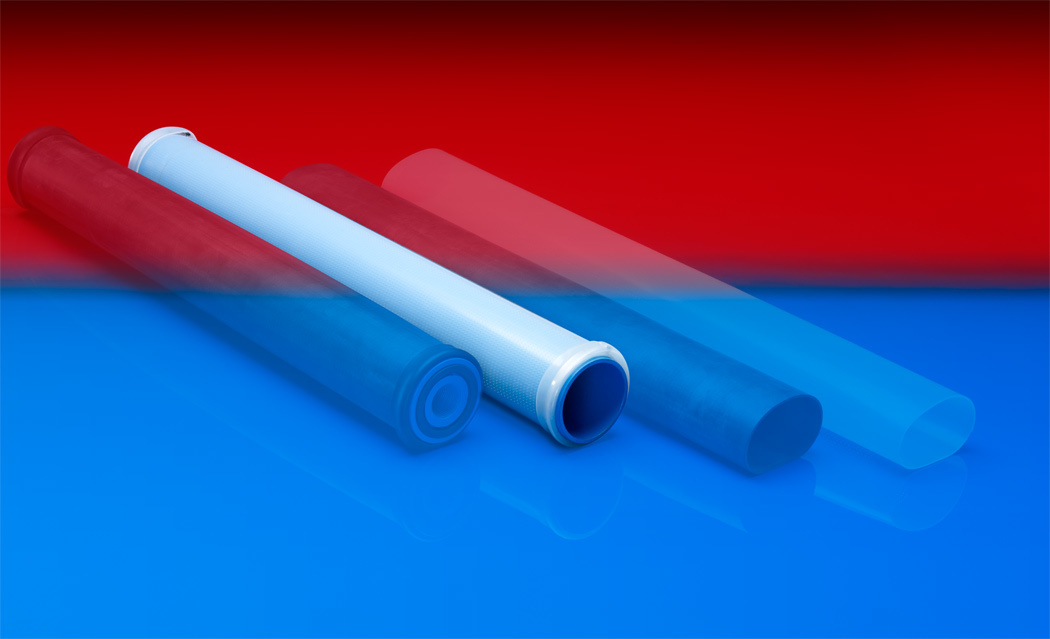

Membrane tube diffuser

应用

  • 膜管曝气器,工业和市政污水处理厂,压力曝气出细密气泡,生化池内氧气输入促进硝化作用,永久性和间歇性通风,固定床和生物反应器内氧气输入及循环,生化池完全混合,砂阱百叶窗通风,河流和湖泊治理,水产养殖,养殖渔业

特性

  • 可操作范围:普通操作4-6,最小2,最大10,清洗操作12N立方米每小时
  • 快速简易的安装
  • 良好的耐废水和城市污水符合最近DWA-M 115条款规定
  • 符合 RoHS 规定

温度范围

  • -40°C 至 90°C
  • 短时间可达125°C

结构

管壁: 硅胶 邵氏硬度70±5A 接头身体:聚丙烯 卡箍:不锈钢1.4301/AISI 304/W2/INOX

定制化交货

  • 透明 (标准)

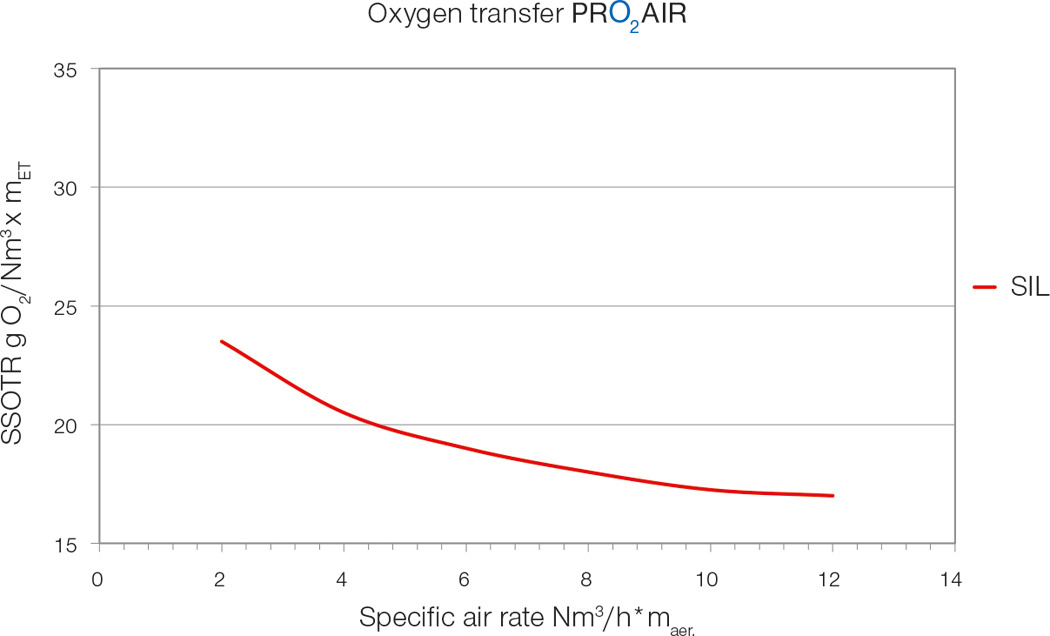

Oxygen supply capacity/ yield refer to full floor aeration with an arrangement density of 19% and a blow-in depth of 1,80 m. Measured in clean water according to DWA-M 209.The efficiency and reliability of NORRES membrane tube diffuser can be increased by optimising and adapting the operating parameters. The permanent elasticity of the membrane has a crucial influence on the uniformity of the opening characteristic of the slit perforation over the full operating range. This in turn ensures a largely constant performance of the fine-bubble, compressed air aeration system.


相关附件

ZUBEHÖR

CONNECT 684

Connector for mounting membrane tube diffusers on rectangular profiles from both sides

CONNECT 685

Adapter for the drillholes with a diameter of 45 mm

CONNECT 683

Seal for assembly of adapter bodies
